Product Name:
5052 5083 3003 Stair Tread Plates 0.2mm 400mm Thickness Mirror Finish Aluminum Sheet
No. :
:
:


5052 5083 3003 Stair Tread Plates 0.2mm-400mm Thickness Mirror Finish Aluminum Sheet


Mirror finish aluminum stair tread plates diamond sheet 5052 5083 3003 manufacturer

aluminum diamond tread plate are commonly used to build stairs that do not require a concrete fill and that need an anti-slip surface for safe foot traffic.

Diamond plate stair treads are manufactured from high quality diamond plate, also known as checker plate

Aluminum plate stair treads are ideal for retrofitting over existing dangerously slick flooring in applications that require a lightweight corrosion resistant surface. Non-slip aluminum plate stair treads are a cost-effective way to create an instantly safe surface without completely replacing existing flooring.

Aluminum Tread Plate Features:
Light weight transport sector is required, Disassembling, Convenient assembling,

the best comer of an aluminum alloy step. Increase the energy-saving effect.

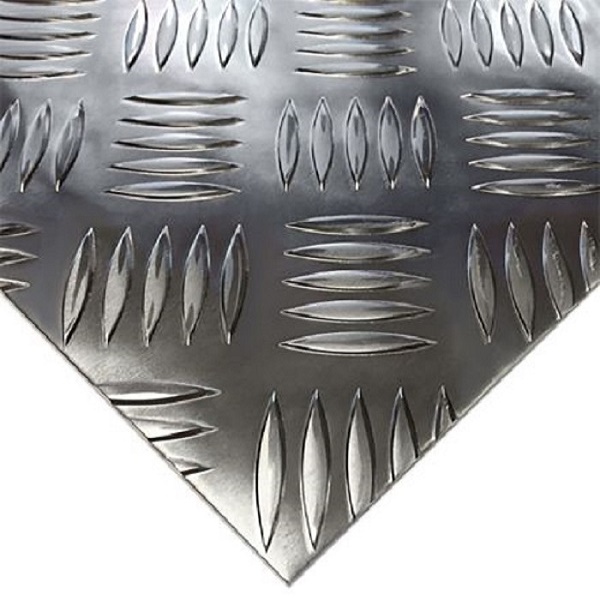

Aluminum Tread Plate for Anti-slip Floor Patterns:
* big 5 bars
* small 5 bars
* diamond
* 3 bar
* pointer etc.

5052 and 5083 Aluminum tread diamond sheets are very resilient against aggressive substances and therefore, they regarded as indestructible. Due to their durability, they are used in many different areas because they do not lose their shape or look, even after a long time. Whether industrial floors, airplanes, ships and vehicles, or stairs indoors or outdoors -5052 aluminium diamond plates are a popular material which is appreciated for its excellent properties, the high resilience and the low weight. Even designers use these plates due to their decorative look

Specification of aluminum diamond sheet

Alloy No. 1060, 1100, 1200, 3003, 3105, 5005, 5052, 5251, 5754, 5454, 5154, 5083, 5086 6061, 6082
Temper H114, H224, H12, H14, H16, H18, H32, H34, H36, H38, T4, T6, F
Surface Bright finish, Mill finish
Bar Difference 1 bar (Diamond), 2 bar, 3 bar, 5 bar
Available Dimension of aluminum diamond sheet
Mill finish Surface Bright finish Surface
Thickness (mm) 1.00---6.50mm 1.20---6.50mm
Pattern height Sheet Thickness from 1.0mm to 2.0mm, bar height: 0.50mm Sheet Thickness from 1.0mm to 2.0mm, bar height: 0.50mm
Sheet Thickness from 1.0mm to 2.0mm, bar height: 1.00mm Sheet Thickness from 1.0mm to 2.0mm, bar height: 1.00mm
Sheet Thickness above 2.0mm, bar height: 1.50mm Sheet Thickness above 2.0mm, bar height: 1.50mm
Width (mm) Maximum 1500mm Maximum 1650mm
Length (mm) Maximum 6000mm Maximum 6000mm
Paper interleaves On request for selected On request for selected
Normal size 1200×2400mm, 1219×2438mm, 1219×3048mm 1200×2400mm, 1219×2438mm, 1219×3048mmir Tread Plates 0.2mm-400mm Thickness Mirror Finish Aluminum Sheet

Aluminum tread plate, also referred to as aluminum checker plate, stair plates was first known for it's anti-slip property as tread plates

Aluminum Tread Plate Applications:

1] Vehicle
Characteristics and benefits: light weight transport sector is required, the best

comer of an aluminum alloy step. Increase the energy-saving effect.
Applications: checker plate floor, such as van-type vehicle catwalk flooring,

wood step of the bus or truck, train inspection hole lid, tank car, the car cold storage.


2] Ship
Characteristics and benefits: because the excellent corrosion resistance in seawater,

requires no resistance such as repainting. It can be used with confidence for many years.
Applications: corridor and bridges over the lid and floors, stairs, cabin deck, fish tank,

gangway to the floating dock.
Characteristics and benefits: corrosion resistance of the step corner has been utilized

shopping and tourist attractions that require aesthetics, such as collective for many years.
Applications: floors, stairs, shelves, such as gutter lid, the bicycle.


3] Plant
Characteristics and benefits: harmless because it is also suitable for container species,

such as facilities and chemical plants and food plant is excellent in chemical resistance.
Applications: bench floor and stairs, equipment/ plant machinery, such as ambulatory inspection.
