Product Name:
.063 light weight corrosion resistance 3003 5052 Tread Bright diamond raised pattern aluminum checker plate sheet coils
No. :

.063 light weight corrosion resistance 3003 5052 Tread Bright diamond raised pattern aluminum checker plate sheet coils

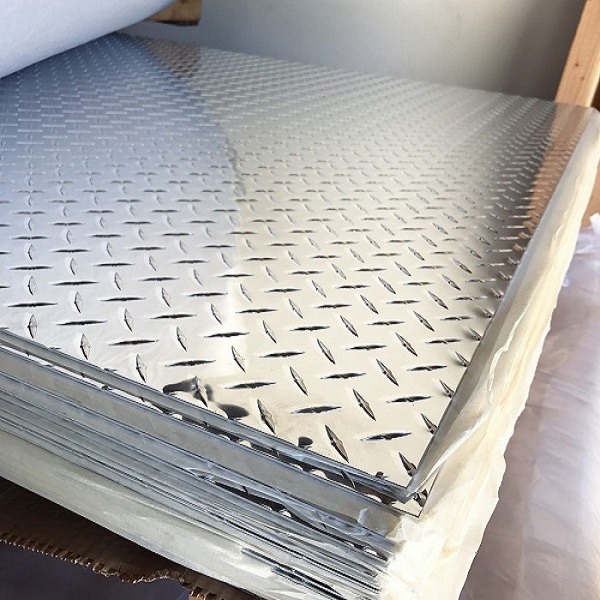

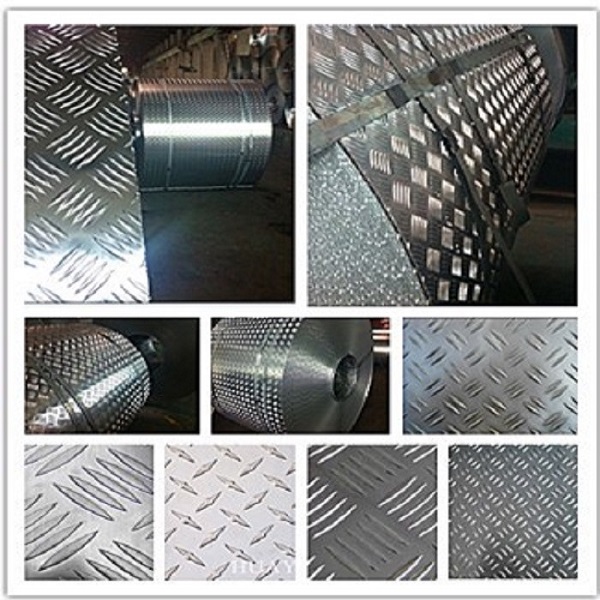

Aluminum checker plate is also called aluminum chequered plate. It is made from aluminum sheet. One side of the surface is embossed with diamond plate pattern. The different pattern can fit different environments and various usage. Aluminum checker plate is better for antirust and lighter than other materials, it can be used for many years and can retain high value after being replaced. This type of checkered plate is widely used as antiskid plate in both commercial and industrial flooring needs and also used in the vehicles, such as the ambulance and the firework truck

Aluminum Tread Bright (3003-H22) is a sheet product with a raised diamond pattern and a bright shiny finish for decorative and non-skid applications. It is commonly used on ambulances, fire trucks, trailers and toolboxes for a bright decorative finish that is easily cleaned.

Tread Bright Aluminum features a raised diamond pattern to provide overall traction. Lightweight with a polished and textured finish, it exhibits good corrosion resistance and is easily workable. It is commonly used for no-slip walkways, ornamental projects, truck bed liners, and wall or floor panels

At RuiYi alumininum metal, we offer four grades of aluminum in various raw material forms - including coil, sheet, custom-sized blanks, angle, channel, and flat bar profiles. Each shipment is accompanied by certificates of compliance and complete test documentation.

Features & Characteristics of Aluminum & Aluminum Alloys
3003 H14 Aluminum is alloyed with 1.2% manganese to improve the strength of commercially pure aluminum. The H14 temper has been strain hardened and partially annealed. As a good general purpose aluminum, it offers excellent corrosion resistance, workability, and weldability. It has many uses including decorative trim, vehicle components, cooking utensils, and roofing and siding.
5052 H32 grade aluminum's major alloying element is magnesium, which makes it much stronger than 3003 series. In addition to superior weldability and good formability, it provides excellent corrosion resistance, especially in salt water and marine environments. Anodized coatings take on a bright and clear appearance. It is also an excellent choice for applications that require strength and formability at a reasonable cost.
6061 T6 Aluminum has magnesium and silicon as its major alloys. Its high strength-to-weight ratio makes it suitable for large parts that need to be very light. Exhibiting good workability and high resistance to corrosion, it is easily welded by a skilled technician but welds may require re-hardening. This alloy is widely used for aircraft, marine, appliance, and mechanical system components where improved strength, high corrosion resistance, and light weight characteristics are desirable

Material: High grade aluminum sheet.

Finish: Mill and polish.

Thickness: 0.1", 0.63", 0.125", 0.188", 0.250", 0.45", 0.5".

Panel size: Max. 4' × 10' (usually is 1' × 1', 1' × 2', 1' × 4', 1' × 8', 2' × 2', 2' × 4', 2' × 8', 4' × 4', 4' × 8', 4' × 10')

Color: Siver, black, yellow, red.

Alloy: 1000 series, 3000 series, 5000 series, 6000 series, 8000 series.

Temper: O, H22, H24, H26, H32, H34.

Aluminum stair tread sheet, Aluminum tread Brite plate,Aluminum checker plate manufacturers, Perforated aluminum sheet china,Diamond sheet manufacturers, Aluminum tread plate manufacturers

Diamond aluminium tread plate or floor plate is widely used for a variety of structural, architectural and cosmetic applications. A method has been developed to roll metal plates with an upraised "lug" pattern, providing the customer with several choices to best meet the needs of the project, with specific qualities of cleanability, impact resistance, support strength, and corrosion resistance

Bright Tread Plate(3003) is defined by its offset diamond shaped alternating single bar pattern. Common applications include ramps, toolboxes, decorative flooring or walls, vehicle running boards or kick plates, trailers, dock surfaces, and stairways
